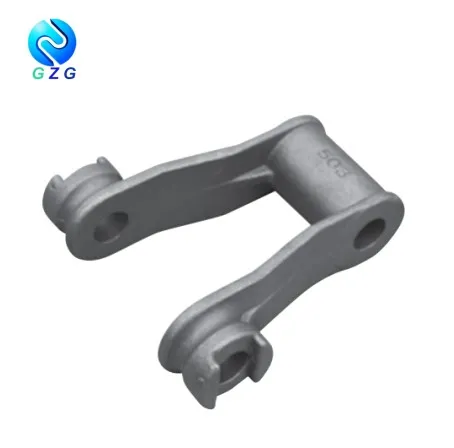

GZG provides 3 types of pintle chains, 400 class, 500 class and 700 class.The dimensions of them are standard and we could control it in a reasonable tolerance.If you are looking for non-standard cast pintle chain, kindly let us know and we'll discuss your request.
Darganfyddwch 3 math o dimensiynau cadwyn peint cast fel y nodir isod.
1. Cast 400 o Gyfadwyni Pintle Dosbarth
 | |||||||
| Cadwyn Nac ydw. | Cae | Dimensiynau | Yn y pen draw nerth | Pwysau | |||
| A | B | C | D | ||||
| mm | mm | mm | mm | mm | KN | Kg/M | |
| 442 | 34.93 | 26.92 | 50.80 | 19.05 | 7.94 | 27.00 | 2.23 |
| 445 | 41.40 | 26.92 | 50.80 | 19.05 | 7.94 | 27.00 | 2.38 |
| 452 | 38.25 | 27.69 | 56.36 | 21.43 | 9.26 | 31.00 | 3.27 |
| 455 | 41.40 | 28.45 | 57.94 | 21.43 | 9.26 | 31.00 | 3.13 |
| 462 | 41.50 | 36.58 | 65.09 | 23.81 | 11.11 | 39.00 | 4.02 |
| 477 | 58.62 | 31.75 | 64.29 | 25.40 | 11.11 | 43.00 | 3.27 |
| 488 | 66.27 | 41.00 | 75.00 | 25.40 | 11.11 | 49.00 | 4.61 |
 | |||||||
| Cadwyn Nac ydw. | Cae | Dimensiynau | Yn y pen draw nerth | Pwysau | |||
| A | B | C | D | ||||
| mm | mm | mm | mm | mm | KN | Kg/M | |
| 4103 | 78.11 | 47.60 | 87.00 | 38.00 | 19.01 | 124.00 | 9.23 |
| 4124 | 103.20 | 58.00 | 108.00 | 44.50 | 20.64 | 166.00 | 13.69 |
2. Cast 500700 Cadwyni Pintle Dosbarth
 | |||||||
| Cadwyn Nac ydw. | Cae | Dimensiynau | Yn y pen draw nerth | Pwysau | |||
| A | B | C | D | ||||
| mm | mm | mm | mm | mm | KN | Kg/M | |
| 503 | 76.70 | 50.80 | 107.20 | 33.30 | 14.00 | 90.00 | 9.23 |
| 504 | 103.10 | 73.20 | 146.00 | 42.90 | 16.00 | 122.00 | 12.65 |
 | |||||||
| Cadwyn Nac ydw. | Cae | Dimensiynau | Yn y pen draw nerth | Pwysau | |||
| A | B | C | D | ||||
| mm | mm | mm | mm | mm | KN | Kg/M | |
| 710 | 119.63 | 78.60 | 142.88 | 37.00 | 17.46 | 122.00 | 9.38 |
| 720 | 152.40 | 45.97 | 90.09 | 38.10 | 17.46 | 122.00 | 6.25 |
| 720S | 152.40 | 47.70 | 92.40 | 39.60 | 19.05 | 167.00 | 7.74 |
| 730 | 41.50 | 50.80 | 96.00 | 44.45 | 19.05 | 187.00 | 8.93 |
Sut ydyn ni'n pacio'r cadwyni?
As the picture shows, normally we don't use carton box as how we pack roller chain. Instead, we put cast chain or drop-forged chain in transparent bag first, then use plywood case to protect them from damage.
Sawl ffordd y gall cleient ddewis ar gyfer talu a chludo?
Ar gyfer taliad, rydym yn cynghori cleient tramor i ddewis T / T, ond mae ffordd arall i'n talu yn dderbyniol hefyd.
Ar gyfer cludiant, mae'r rhan fwyaf o gleientiaid yn dewis llongau cefnforol a cherbyd tir ar gyfer archeb enfawr, yn dewis cyflym ar gyfer archeb fach (os nad yw'r peth yn fawr ac yn drwm).
Rhowch wybod i ni yn garedig os oes angen unrhyw help arnoch, anfonwch e-bost atom neu ffoniwch ni, rydym yn hapus i ddatrys eich problem.
