Applications of Cast Combination Chain : Sewage treatment equipment, sugar manufacturing plant transmission and steel factory conveyor.

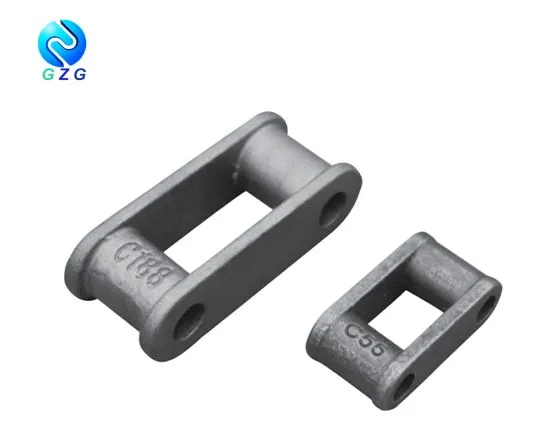

Cast Combination Chain Types: C55, C77, C188, C102B, C110, C132
 | |||||||
| Chain No. | Pitch | Dimensions | Ultimate strength | Weight | |||
| B | C | T | D | ||||
| mm | mm | mm | mm | mm | KN | Kg/M | |
| C55 | 41.4 | 32.0 | 19.0 | 4.8 | 9.5 | 40.0 | 3.2 |
| C77 | 58.6 | 32.0 | 22.0 | 4.8 | 11.1 | 49.0 | 3.4 |
| C188 | 66.3 | 39.6 | 29.0 | 5.8 | 12.7 | 62.0 | 5.3 |
| C102B | 101.6 | 73.0 | 38.1 | 9.5 | 20.0 | 107.0 | 9.4 |
| C110 | 152.4 | 72.0 | 38.1 | 9.5 | 16.0 | 107.0 | 9.3 |
| C132 | 153.6 | 111.0 | 50.8 | 12.7 | 25.4 | 272.0 | 21.6 |
Guizhou GZG Transmission Co., Limited locates in Duyun, the biggest Southeast city of Guizhou Province.
Our company established in 2010, under years' efforts, we had promoted all kinds of metal processing machinery, introduced various types of testing equipment. Currently, our production capacity to all kinds of machines or parts could catch 300,000pcs (sets) per year.
Our products were popular in Southeast Asia, EU and USA markets, and been widely used in mining, steel, plane, ship, and all kinds of machines.
Top Quality, Best Price, and Considerate Service are our principles, kindly let us know if you need any help.
Cast Combination Chain will put into big plastic bag then pack in plywood case.
