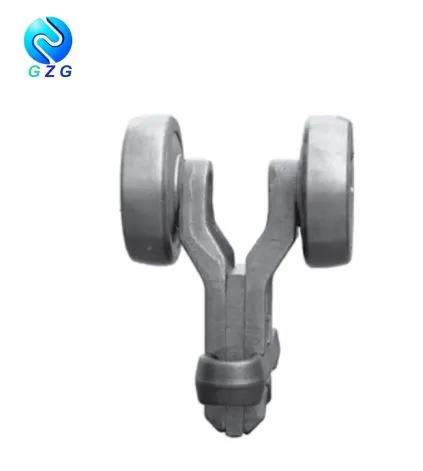

Troli wedi'i blygu a Reverse Trolihefyd yn atodiad i gadwyni di-afon ar gyfer trawsgludwyr. Rydym yn darparu troli a throli gwrthdroi. Y prif fathau ohonynt yw X348, X458, X678, XT100, XT160, S348, 678. Mae'r troli uchaf yn rholio mewn canllaw, y gwaelod ohono wrth gysylltu'r gadwyn drawsgludwyr a allai ddarparu ynni cinetig. Mae troli wedi'i ffugio gan GZG yn cael ei gydnabod i ddangosqulities fel llwytho uchel, perfermance llithro llyfn, maint safonol.
*Lluniadu a dimensiynauTroli wedi'i blygu'n gollwng
 | |||||||||||
| Cadwyn Na. | Dimensiynau | Pwys | |||||||||
| P | H | A | K | E | F | B | T | C | D | ||
| Mm | Mm | Mm | Mm | ° | Mm | Mm | Mm | Mm | Mm | Kg/Set | |
| X348-1 | 100.0 | 64.0 | 102.0 | 84.0 | 4 | 47.8 | 14.0 | 6.0 | 40.0 | 60.0 | 1.30 |
| X348-2 | 100.0 | 63.5 | 122.0 | 94.0 | 6 | 48.0 | 18.0 | 6.0 | 40.0 | 60.0 | 1.30 |
| X458-1 | 130.0 | 83.0 | 138.0 | 113.0 | 4 | 54.0 | 18.0 | 10.0 | 54.0 | 82.0 | 3.00 |
| X458-2 | 128.5 | 82.5 | 131.0 | 109.0 | 4 | 54.0 | 20.0 | 10.0 | 54.0 | 80.0 | 3.00 |
| X458-3 | 150.0 | 103.0 | 138.0 | 106.0 | 4 | 54.0 | 18.0 | 10.0 | 54.0 | 82.0 | 3.20 |
| X678 | 170.0 | 102.0 | 171.0 | 145.0 | 4 | 70.0 | 24.0 | 12.7 | 85.0 | 120.0 | 7.40 |
| XT100 | 130.0 | 83.0 | 138.0 | 113.0 | 4 | 54.0 | 18.0 | 10.0 | 54.0 | 82.0 | 3.00 |
| XT160 | 171.0 | 103.0 | 180.0 | 140.0 | 6 | 70.0 | 26.0 | 16.0 | 84.0 | 120 | 8.80 |
 | ||||||||||||
| Cadwyn Na. | Dimensiynau | Pwys | ||||||||||
| P | H | A | K | E | F | B | T | C | G | D | ||
| Mm | Mm | Mm | Mm | ° | Mm | Mm | Mm | Mm | Mm | Mm | Kg/Set | |
| S348 | 100.0 | 65.8 | 143.0 | 104.0 | 3 | 47.8 | 22.0 | 6.0 | 40 | / | 60 | 1.5 |
 | ||||||||||||
| Cadwyn Na. | Dimensiynau | Pwys | ||||||||||
| P | H | A | K | E | F | B | T | C | G | D | ||
| Mm | Mm | Mm | Mm | ° | Mm | Mm | Mm | Mm | Mm | Mm | Kg/Set | |
| 678 | 136.0 | 89.0 | 146.0 | 114.0 | 4 | 54.0 | 18.0 | 10.0 | 86.0 | 54 | 82.00 | 3.6 |
*Lluniadu a dimensiynauTroli Gwrthdroi wedi'i blygu'n gollwng
 | ||||||||
| Cadwyn Na. | Dimensiynau | Pwys | ||||||
| P | H | A | F | T | C | D | ||
| Mm | Mm | Mm | Mm | Mm | Mm | Mm | Kg/Set | |
| X348 | 86.0 | 48.0 | 93.0 | 55.0 | 6.0 | 40.0 | 60.0 | 1.3 |
| X458 | 95.0 | 44.0 | 120.0 | 54.0 | 10.0 | 54.5 | 82.0 | 2.5 |
*Atodiad ar gyferTroli
 | ||||||||||
| Cadwyn Na. | Dimensiynau | |||||||||
| A | L | F | B | C | D | E | T | S | M | |
| Mm | Mm | Mm | Mm | Mm | Mm | Mm | Mm | Mm | Mm | |
| X348 | 38.1 | 135.5 | 47.8 | 80.0 | 25.4 | 8.5 | 13.5 | 6.0 | 14.0 | / |
| X458 | 54.0 | 148.2 | 54.0 | 52.5 | 33.5 | 10.5 | 13.5 | 10.0 | 17.0 | / |
| X678 | 76.2 | 177.8 | 70.0 | 92.0 | 41.5 | 13.5 | 20.5 | 12.7 | 20.8 | / |
| XT160 | 80.0 | 248.0 | 70.0 | 107.0 | 43.5 | 13.0 | 20.0 | 16.0 | 32.0 | / |
 | ||||||||||
| Cadwyn Na. | Dimensiynau | |||||||||
| A | L | F | B | C | D | E | T | S | M | |
| Mm | Mm | Mm | Mm | Mm | Mm | Mm | Mm | Mm | Mm | |
| X348 | 38.1 | 68.0 | 47.8 | / | 25.4 | 8.3 | / | 6.0 | / | / |
| X458 | 54.0 | 85.0 | 54.0 | / | 33.5 | 11.5 | / | 10.0 | / | / |
| X678 | 80.0 | 110.0 | 70.0 | / | 41.5 | 13.5 | / | 12.7 | / | / |
| XT160 | 80.0 | 110.0 | 70.0 | / | 43.5 | 13.0 | / | 16.0 | / | / |
 | ||||||||||
| Cadwyn Na. | Dimensiynau | |||||||||
| A | L | F | B | C | D | E | T | S | M | |
| Mm | Mm | Mm | Mm | Mm | Mm | Mm | Mm | Mm | Mm | |
| X348 | 38.1 | 146.1 | 47.8 | 39.7 | 25.4 | 8.3 | 3.6 | 6.4 | / | 1/2-13UNC |
| X458 | 50.8 | 177.8 | 54.0 | 47.6 | 33.5 | 10.3 | 5.0 | 9.5 | / | 5/8-11UNC |
| X678 | 76.2 | 222.0 | 70.0 | 66.7 | 41.5 | 13.5 | 5.6 | 12.7 | / | 7/8-9UNC |
| XT160 | 78.0 | 225.0 | 70.0 | 67.0 | 43.5 | 13.0 | 5.0 | 16.0 | / | M24X3 |
